LIFTUBE belt conveyor sealing, Belt conveyor accessories

OUR ACCESSORIES FOR CONVEYOR BELT : YOUR ANSWER FOR PROBLEMS OF SEALING AND SAFETY

The patented LIFTUBE® and the dust-collector are accessories for conveyor belt.

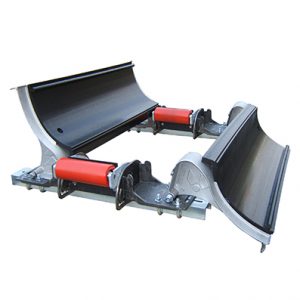

The LIFTUBE® system enables the belt to run on a central horizontal tilting roller and to slide on the edges, which also tilt.
A removable hood can be adapted to the equipment to reduce belt conveyor dust emission. To facilitate maintenance, the rollers are accessible via innovative tilting supports.
The conveyor belt remains accessible by tilting the glide boards after removing the hoods, skirtings and the various product guiding elements.

The dust-collector is a 2m-LIFTUBE® kit with filtering unit atop of hood – air-jet filter cleaning. Allow reduction of very fine dust emission just after discharge.

Belt width : from 500 to 1400 mm
Belt speed : 0.05 to 5 m/s
Output : Up to 1200 tons/h
Particle size : up to 300 mm
Density : up to 4
Product temperature : up to 220°C (428 °F)
Standard & evolutive modules
Suitable for both new or existing conveyors

Download brochure

06_LIFTUBE_Centrale_thermique_Proche_Orient (1)

Advantages

ENVIRONMENT : Dust emissions reduction between the loading and off-loading points: compliance with current standards (ISO 14001)
QUALITY : Contamination free for your product/Longer service life of the belt
SAVINGS :No change in the existing structure/optimization of output/no loss of production
maintenance operations
MODULAR :Standard, adaptable and evolutive elements on new or existing conveyors/Installation on all or part of the conveyor/Compatible with reversible belt

Related services

Visits & technical recommendations (proportioning and layout)
Supply of the installation plan
We offer complete installation of our equipment if needed
Up to 3-year warrant
On-site & external training (STANDARD INDUSTRIE training institute: IFSI – No. 31 59 05660 59)
After-sales service & maintenance contract
Statutory monitoring
