AIRCHOC® AIR BLASTER
ELIMINATION DES COLMATAGES & CONCRETIONS
23 September 2022NOZZLE FOR AIR BLASTER SYSTEM
18 November 2022
Your answer for blockages & build-ups removal
- Air blaster / air cannon AIRCHOC® acts directly and preventively on the product
- Compressed air (from 4 to 400 L) is instantly released through a suitable outlet port
- This is equivalent to a blast
=> BLOCKAGES & BUILD-UPS ARE REMOVED
THE LARGEST RANGE OF AIR BLASTERS ON THE MARKET
- 4 to 400 L tanks
- 50 to 200 mm nominal outlet diameter
- Suitable for high temperatures
- Available option: ATEX Zone 20
- Additional options: Automatic guillotine, Control and monitoring unit
- Over 50,000 AIRCHOC® air cannon installations in more than 90 countries
> Our whole range of air blasters has been developed for wireless use
> All AIRCHOC® hardwired installations can be converted into wireless
- IMPACT: Aerodynamics of the head / Balance between volume & exit diameter
- SAFETY: No AIRCHOC® blast with air pressure drop
- SAVINGS: Reduced air consumption /only 1 single pneumatic line / wireless system
- QUALITY:
- MAINTENANCE: Direct easy access to the mechanism
- RELIABILITY: Protected quick exhaust valve /self-aligning piston
- SILENCE: Low noise emissions
- Visits & technical recommendations (dimensioning & positioning
- Supply of the installation drawing
- We offer complete installation of our equipment if needed
- Up to 3-year warranty
- In-house & external training (STANDARD INDUSTRIE training institute : IFSI – No. 31 59 05660 59)
- After-sales service & maintenance contract
- Standards compliance

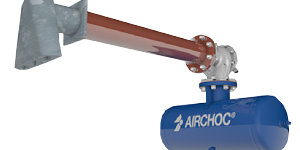

- DEFLECTORS: Direct the air flows towards sensitive clogging zones – Steel or refractory stainless steel version
- AUTOMATIC & CYCLICAL CONTROL DEVICES: Automatically triggered AIRCHOC® blasts (controls up to 128 AIRCHOC®)>
- INSULATION DEVICE: Secured maintenance operations: high temperature, aggressive products, back flow risk
- SAFETY DEVICE: Safe use AIRCHOC®(pressure gauge, pressure relief valve, shut-off valve etc.)
- MAINTENANCE KIT: Reduced intervention time & easy inventory
- STAINLESS STEEL CHAMFER PISTON: Increased lifetime and aggressive atmospheres proof (chemicals, incineration, cement works)
- REMOTE CONTROL RAMP: Triggers AIRCHOC® blasts remotely (centralised solenoid valves positioned at man’s height
- PNEUMATIC DISTRIBUTOR: Activates AIRCHOC® blasts pneumatically by positive surge.
